Windows Server SMB Shares and Access Permissions

An SMB share exposes a folder over the network. A successful user needs permission at both the share and NTFS layers; the more restrictive effective access applies. Use a dedicated test folder and an approved domain group rather than broad identities such as Everyone.

---

01

Choose a Test Path and Approved Group

Plan Access

On a Windows Server file server, select a data volume with sufficient space and a documented backup plan. Replace the example group with a real group managed by your directory team. Confirm that the group contains only intended users.

$Path = 'D:\Shares\ProjectLab'
$Share = 'ProjectLab$'
$AccessGroup = 'CONTOSO\ProjectLab-Readers' # replace with approved group
Test-Path 'D:\'
Get-SmbShare -Name $Share -ErrorAction SilentlyContinue

❯ View Expected Console Output

True
No existing share with this name (expected in a new lab)

---

02

Create the Folder and Set NTFS Access

File Permissions

Use a new, empty test directory. The sample grants the group read access at the NTFS layer and leaves existing ACL inheritance intact. Review inherited permissions; adding an ACL entry does not remove any permissions already inherited from a parent.

New-Item -ItemType Directory -Path $Path
$Acl = Get-Acl $Path
$Rule = New-Object System.Security.AccessControl.FileSystemAccessRule(
  $AccessGroup, 'ReadAndExecute', 'ContainerInherit,ObjectInherit', 'None', 'Allow')
$Acl.AddAccessRule($Rule)
Set-Acl -Path $Path -AclObject $Acl
Get-Acl $Path | Select-Object -ExpandProperty Access

❯ View Expected Console Output

IdentityReference                    FileSystemRights AccessControlType
CONTOSO\ProjectLab-Readers           ReadAndExecute   Allow

---

03

Publish the Share with Read Access

Share Permissions

Publish the folder and grant the approved group read access at the SMB share layer. The built-in Administrators group retains administrative access. Share permissions and the NTFS ACL both apply to remote SMB access.

New-SmbShare -Name $Share -Path $Path `
  -ReadAccess $AccessGroup `
  -FullAccess 'BUILTIN\Administrators' `
  -Description 'Temporary project access lab'

Get-SmbShare -Name $Share
Get-SmbShareAccess -Name $Share

❯ View Expected Console Output

Name        Path                 Description
----        ----                 -----------
ProjectLab$ D:\Shares\ProjectLab Temporary project access lab

---

04

Test from a Client and Review the Effective Result

Verify

From a domain-joined test client signed in as a member of the approved group, open the UNC path. Verify read access, and verify that writes are denied when the group is read-only. Troubleshoot DNS, firewall reachability, share ACLs, and NTFS ACLs separately.

Test-NetConnection files01.contoso.com -Port 445
Get-ChildItem '\\files01.contoso.com\ProjectLab$'
Get-SmbConnection | Select-Object ServerName, ShareName, UserName, Dialect

❯ View Expected Console Output

ComputerName     : files01.contoso.com
RemotePort       : 445
TcpTestSucceeded : True

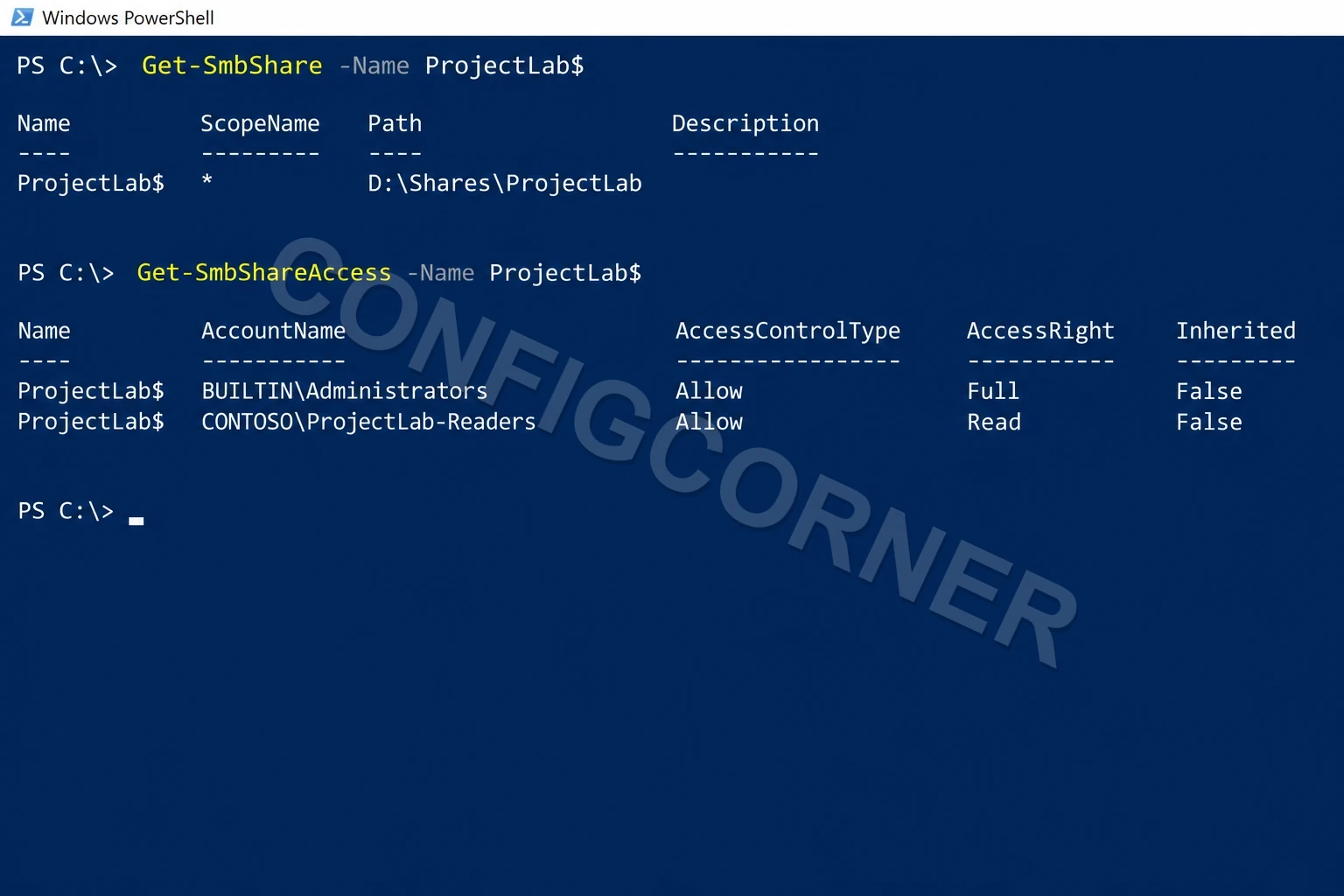

PowerShell: Confirm the share path and the separate share-level access entries.

Note

The trailing $ hides a share from ordinary browse lists; it is not an access control. SMB encryption, access-based enumeration, quotas, auditing, and backups are separate controls to configure according to the data classification and server role.

Further reading: New-SmbShare cmdlet.
